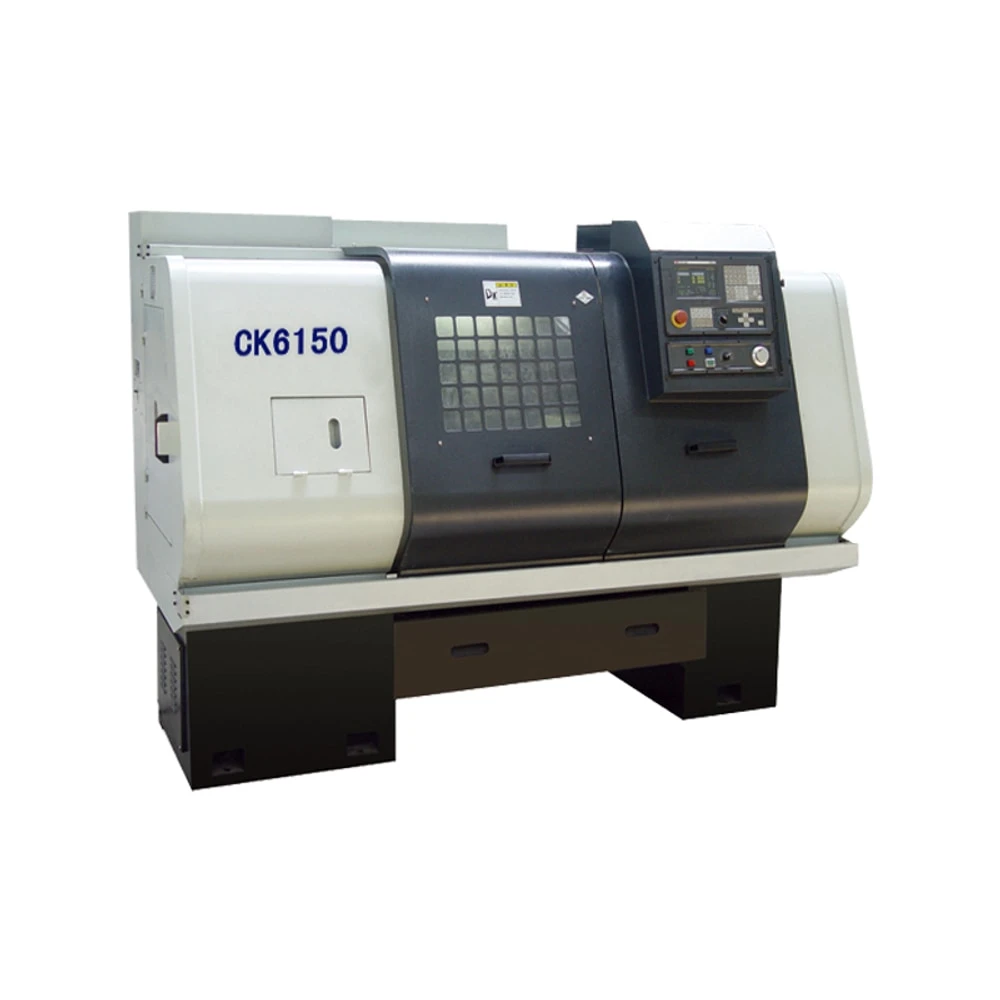

CK6150 Heavy-Duty Flat Bed CNC Lathe
The CK6150 is a heavy-duty industrial flat bed CNC lathe featuring a massive 400mm wide bed, 500mm swing over bed, and large Ø82mm spindle bore. Engineered for heavy pipe, shaft, and flange turning in automotive, oil & gas, and mechanical manufacturing.
Factory benchmark measurements inspected using calibrated laser interferometry and granite master squares.
Factory calibrated tolerances in accordance with ISO 230-2 & JIS B6338
| Max Swing Over Bed | Ø500 mm |
|---|---|
| Max Swing Over Carriage | Ø280 mm |
| Max Turning Length | 1000 / 1500 / 2000 mm |
| Width of Bed | 400 mm |
| Spindle Nose Type | ISO A2-8 / C8 |
| Spindle Bore Diameter | Ø82 mm (Optional Ø105 mm) |
| Manual / Hydraulic Chuck | Ø250 mm 3-Jaw Manual (Hydraulic Optional) |
| Spindle Speed Range | 20 - 1,800 RPM (3-Step Variable) |
| Spindle Motor Power | 7.5 / 11 kW |
| X-Axis Travel | 280 mm |
| Z-Axis Travel | 1000 / 1500 / 2000 mm |
| Rapid Traverse (X/Z) | 6 / 10 m/min |
| Tool Post Type | 4-Station Vertical (Optional 6/8-Station Horizontal) |
| Tailstock Quill Diameter / Taper | Ø75 mm / MT5 |
| Tailstock Quill Travel | 150 mm |
| Positioning Accuracy | ±0.008 mm |
| Repeatability | ±0.005 mm |
| Net Machine Weight | 3,200 kg (1000mm length) |
| Dimensions (L × W × H) | 2950 × 1550 × 1720 mm |
| CNC Controller Options | GSK 988TA, FANUC 0i-TF, SIEMENS 828D |
The DAHAN CK6150 is specifically optimized for high metal removal rates on tough materials including cast steel, alloy steel, and non-ferrous metals. The large Ø82 mm through-bore combined with high-rigidity 400 mm bedways makes it a premier choice for oilfield valve components, hydraulic cylinders, and industrial shafts.
Прямая заводская цена FOB Циндао или CIF с доставкой в ваш порт за 2 часа. Отправьте чертежи деталей для оценки нашими инженерами.
