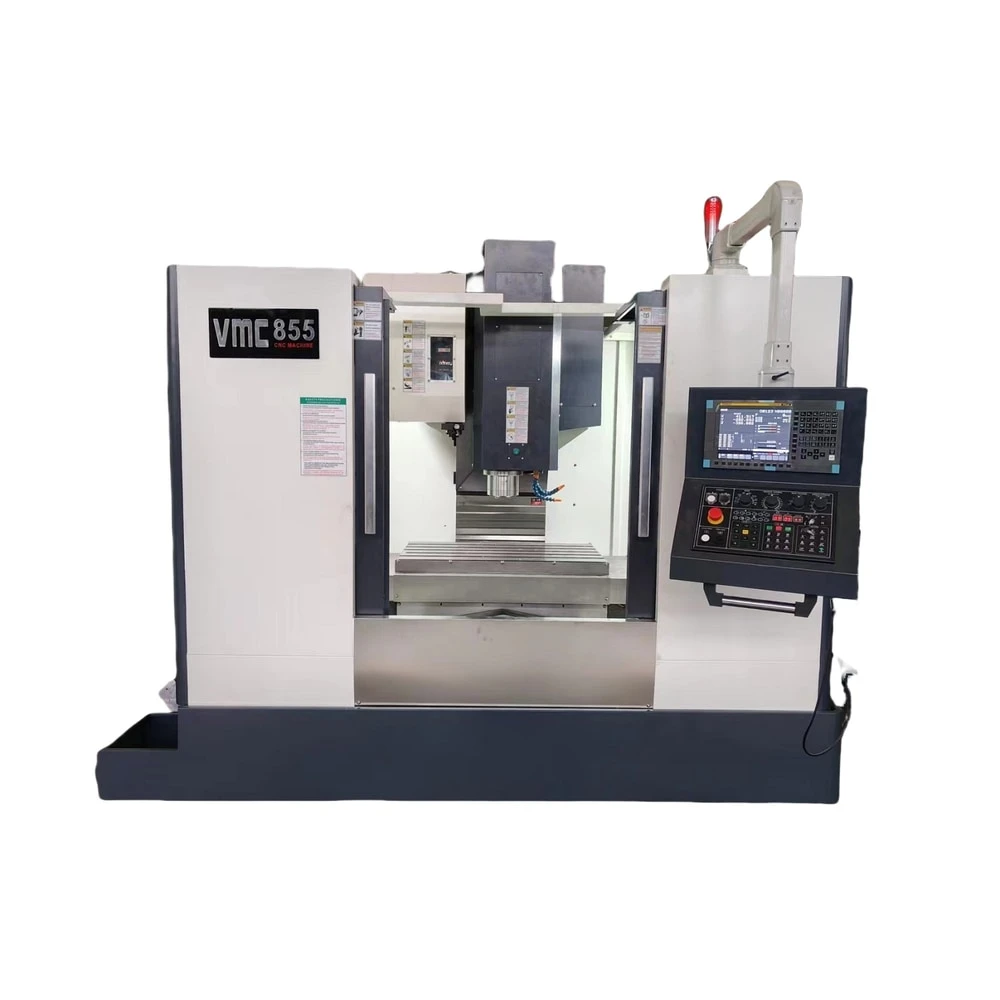

VMC855 Widened Y-Axis High-Rigidity Machining Center
The VMC855 features an expanded 550mm Y-axis travel and an extra-wide four-slideway cast bed base designed specifically for wide injection mold bases, automotive chassis stampings, and large plate machining without workpiece overhang.
Factory benchmark measurements inspected using calibrated laser interferometry and granite master squares.
Factory calibrated tolerances in accordance with ISO 230-2 & JIS B6338
| Table Size | 1000 × 550 mm |
|---|---|
| Max Table Load | 800 kg |
| T-Slot (Width × Qty × Distance) | 18 × 5 × 100 mm |
| X-Axis Travel | 850 mm |
| Y-Axis Travel | 550 mm |
| Z-Axis Travel | 550 mm |
| Spindle Nose to Table Surface | 130 - 680 mm |
| Spindle Taper | BT40 (Optional BT50) |
| Spindle Speed Range | 8,000 - 10,000 RPM (BT50: 6,000 RPM) |
| Spindle Motor Power | 11 / 15 kW |
| Rapid Traverse (X/Y/Z) | 30 / 30 / 24 m/min |
| Cutting Feed Rate | 1 - 10,000 mm/min |
| Tool Magazine Capacity | 24T Arm Type |
| Positioning Accuracy (JIS) | ±0.005 mm |
| Repeatability Accuracy (JIS) | ±0.003 mm |
| Net Weight | 5,800 kg |
| Dimensions (L × W × H) | 2850 × 2400 × 2750 mm |
| CNC Controller Options | FANUC 0i-MF Plus, SIEMENS 828D, MITSUBISHI, GSK |
The DAHAN VMC855 overcomes the traditional Y-axis stroke limitation of standard 850-class machines. With 550 mm of true Y-axis cross travel, toolmakers can machine larger injection molds, extrusion dies, and structural plates without repositioning, maintaining pitch accuracy and surface continuity across the entire part.
Прямая заводская цена FOB Циндао или CIF с доставкой в ваш порт за 2 часа. Отправьте чертежи деталей для оценки нашими инженерами.
