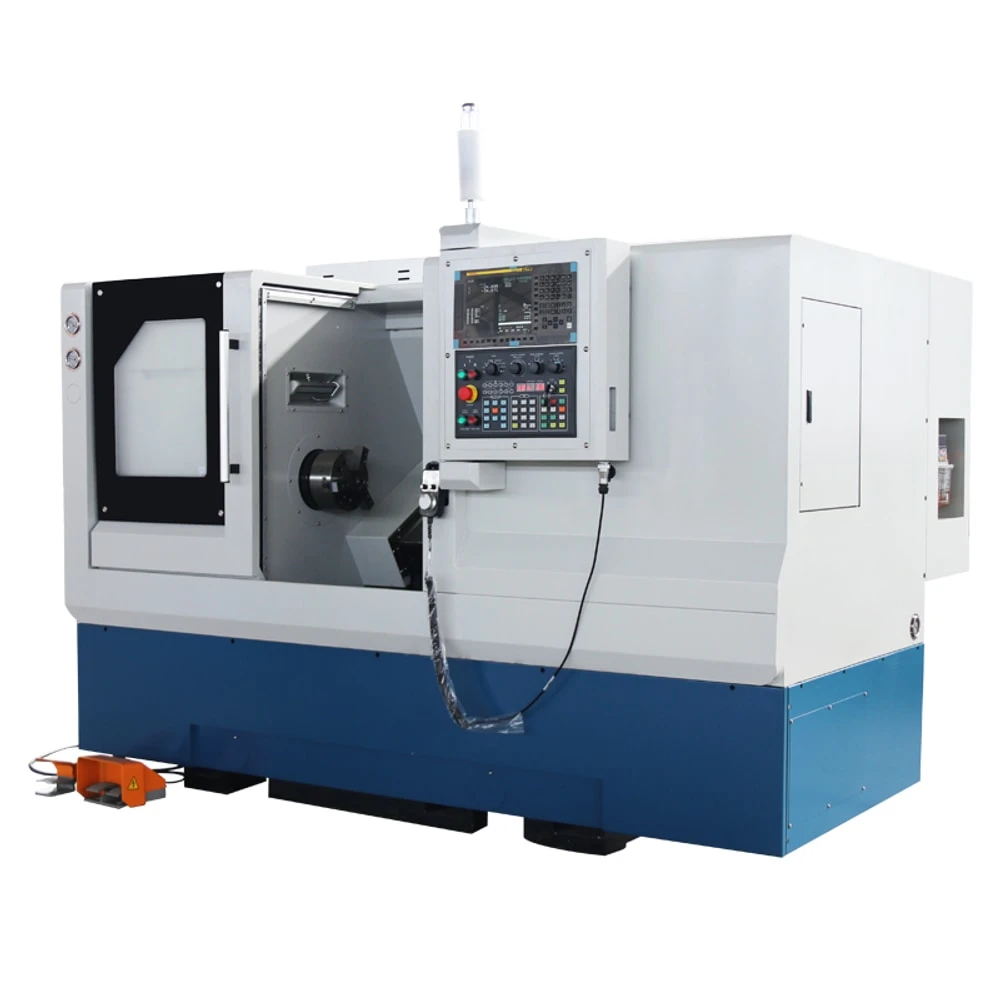

TCK50 High-Precision Slant Bed CNC Lathe
The TCK50 is an industrial 30° true slant bed CNC lathe engineered for high-precision batch turning, rapid chip evacuation, and heavy thermal stability. Equipped with an 8-station hydraulic or servo turret, 8-inch hydraulic chuck, and cartridge-type spindle.
Factory benchmark measurements inspected using calibrated laser interferometry and granite master squares.
Factory calibrated tolerances in accordance with ISO 230-2 & JIS B6338
| Max Swing Over Bed | Ø500 mm |
|---|---|
| Max Turning Diameter | Ø380 mm |
| Max Turning Length | 500 / 750 mm |
| Slant Bed Angle | 30° / 45° True Slant Bed |
| Spindle Nose Type | A2-6 |
| Hydraulic Chuck Size | 8 Inch (Ø210 mm) |
| Spindle Bore Diameter | Ø66 mm |
| Max Bar Capacity | Ø52 mm |
| Spindle Speed Range | 50 - 4,000 RPM |
| Spindle Motor Power | 7.5 / 11 kW |
| X-Axis Travel | 210 mm |
| Z-Axis Travel | 520 / 770 mm |
| Rapid Traverse (X/Z) | 24 / 24 m/min |
| Turret Type | 8-Station Hydraulic / 12-Station Servo |
| Tool Shank Size | 25 × 25 mm |
| Boring Bar Diameter | Ø32 / Ø40 mm |
| Tailstock Quill Diameter / Taper | Ø75 mm / MT4 |
| Tailstock Quill Travel | 100 mm |
| Positioning Accuracy (X/Z) | ±0.005 / ±0.005 mm |
| Repeatability Accuracy (X/Z) | ±0.003 / ±0.003 mm |
| Net Machine Weight | 4,200 kg |
| Dimensions (L × W × H) | 2850 × 1750 × 1780 mm |
| CNC Controller Options | FANUC 0i-TF Plus, SIEMENS 828D, GSK 988TA, SYNTEC 21TA |
The DAHAN TCK50 is designed for modern automotive, hydraulic, and precision machining shops demanding high repeatability under high-mix or high-volume production. The slant bed architecture places the cutting vector in direct compression against the machine foundation, dampening resonant frequencies and yielding mirror-like surface finishes.
